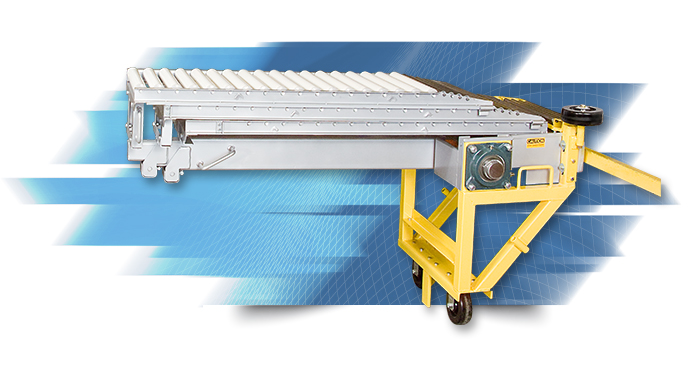

The Traversing Unloader is designed to assist the unloading of cargo and baggage containers and delivery trucks at a conveyor belt. It is mounted on t-rails adjacent to the conveyor to allow the unit to traverse to several different stations. The unloader telescopes, providing a roller conveyor surface for the unloading of containers or delivery vans.
Features
- Movable on t-rail to accommodate several locations
- Heavy duty construction to provide long life
- Unit is counter-balanced with torsion springs for ease of operation
Steel rollers in high impact areas - Unit stores in upright position to allow personnel passage and movement between vans, trucks and stations
- 30 Inch Elevation Standard; Other Elevations are Available.
Specifications
Frame |
All Steel Construction, 17.50 Inches Between Frame. |
|---|---|
Rollers |
PVC Rollers with Steel Rollers in High Impact Areas; 17.00 Inches Wide, 2.50 Inches on Center, 1.90 Inch Diameter. |
Capacity |
50 Lb/Linear Foot |
|
67.5 in |
|
13 feet 4 inches |
