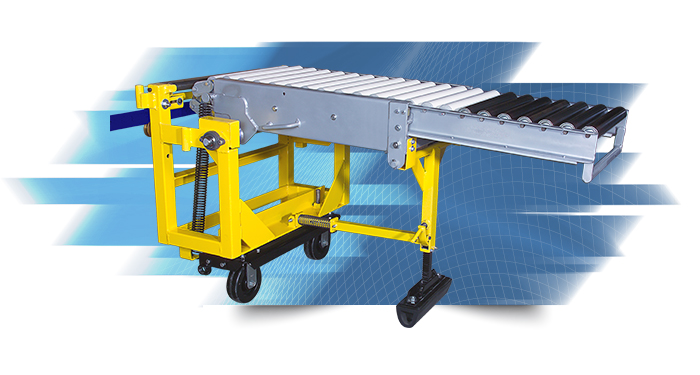

The Load/Unload Aid is designed to assist the loading and unloading of cargo and baggage containers and delivery trucks at a conveyor belt. The Load/Unload Aid is mounted on rails adjacent to the conveyor to allow the unit to service several different positions. The Load/Unload Aid telescopes out providing a roller conveyor surface to speed up the loading or unloading of containers.
Features
- Movable on track to accommodate several positions
- Heavy duty construction to provide long life
- Unit is counter-balanced with springs for ease of operation
- Steel rollers in high impact area
- Support legs are adjustable to load, unload or flat position
- Unit stores in upright position to allow personnel passage
- Custom designs available
Specifications
Frame |
All Steel Construction |
|---|---|
Rollers |
1.90 inch diameter PVC Rollers with 1.90 inch diameter Steel Rollers in High Impact Areas |
Roller Length
|
17.50 inch 18.00 inch |
Roller Spacing
|
2.50 inch |
Sizes Available
|
Size 1 (68 inch Retracted, 108 inch Extended, 82 inch Height) Size 2 (58 inch Retracted, 86 inch Extended, 73.5 inch Height) Size 3 (51 inch Retracted, 72 inch Extended, 66 inch Height) Size 4 (42 inch Retracted, 63 inch Extended, 56 inch Height) |
