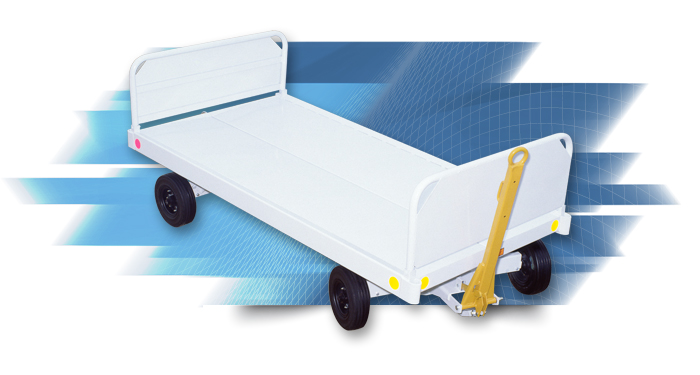

Heavy-duty construction allows the cart to take on as much as 8,000 pounds (3,629 kilograms) at 20-25 mph (32-40 kph) towing speeds.
Capacity |
8,000 pounds (3,629 kg) and 5,000 pounds (2,268 kg) for a light-duty model |
---|---|
Weight |
1,240 pounds (562 kg) and 1,100 pounds (499 kg) for a light-duty model |
Running Gear
|
Rigid mount or torsion axle |
Track Width
|
52.75 in. (1.3 m) |
Rims
|
9-gauge, 5-bolt, 4.5-inch BC, 2-piece demountable |
Tires
|
|
Wheel Spindles
|
1-5/8-inch (4.1-cm) diameter replaceable |
Hubs
|
1-1/4-inch (3.2-cm) diameter sealed tapered roller bearings |
Axle Tubes
|
5-by-2-by-3/16-in. (12.7-by-5.1-by-0.48-cm) wall, rectangular tubing |
Body Panels
|
16-gauge, CR sheet |
Floor Panels
|
12-gauge, CR sheet |
King Pin
|
2-inch (5.1-cm) diameter (1-1/2-inch/3.8-cm in light-duty cart) stress-proof with sealed Timken bearings |

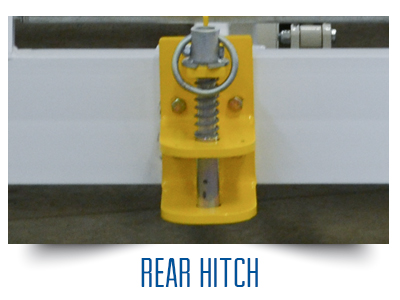

Rear Hitch
|
Spring-loaded E-hitch; additional options available |
Reflectors
|
Eight 3-inch (7.6-cm) diameter, amber on front and red on rear; additional options available |
